1. Product overview:

The FC-III flow computer is specifically designed for measuring gas volume and energy under standard conditions. It supports pulse retrieval and communication with gas meters via RS485 communication channels, High-frequency and Encoder inputs as well.

The FC-III flow computer adopts a modular design, allowing for various configuration methods through different board configurations. With a standard ½ 19" installation size, the flow computer can be directly mounted onto a rack, making it easy to install and remove.

2. Main Advantages:

• Modular design, easy replacement of the extension cards changing flowcomputer purpose

• 5'' touch screen for easy configuration and readout of the data from flowcomputer

• Graphic data presentation

• Advanced security with rising, privileges system-confidential passwords

• Safe shutdown mode-no risk of device failure in case of powerloss

• Easy installation and connection - RACK standard dimensions and standard connection sockets

• Communication with gas meter using HE, Encoder or digital communication supporting most of the designed meters on the market

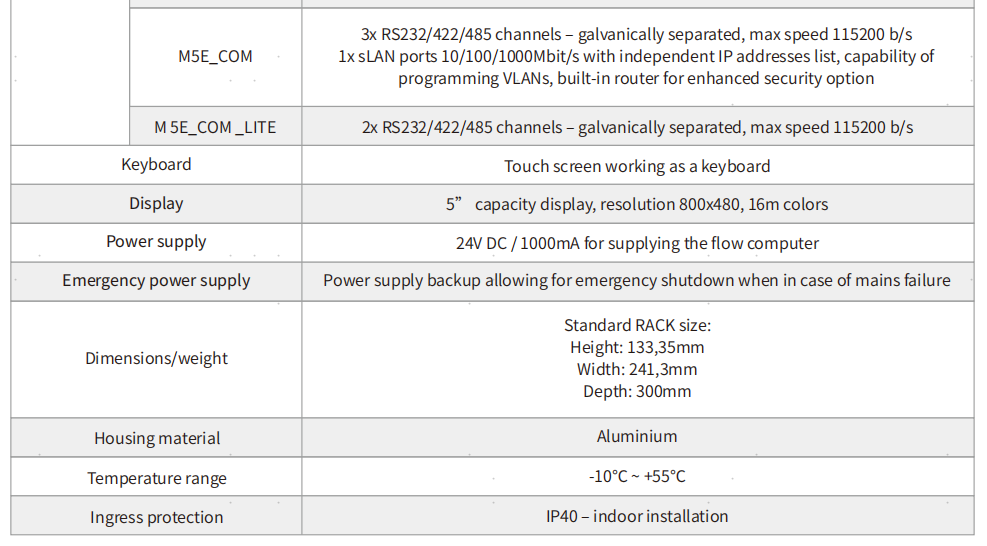

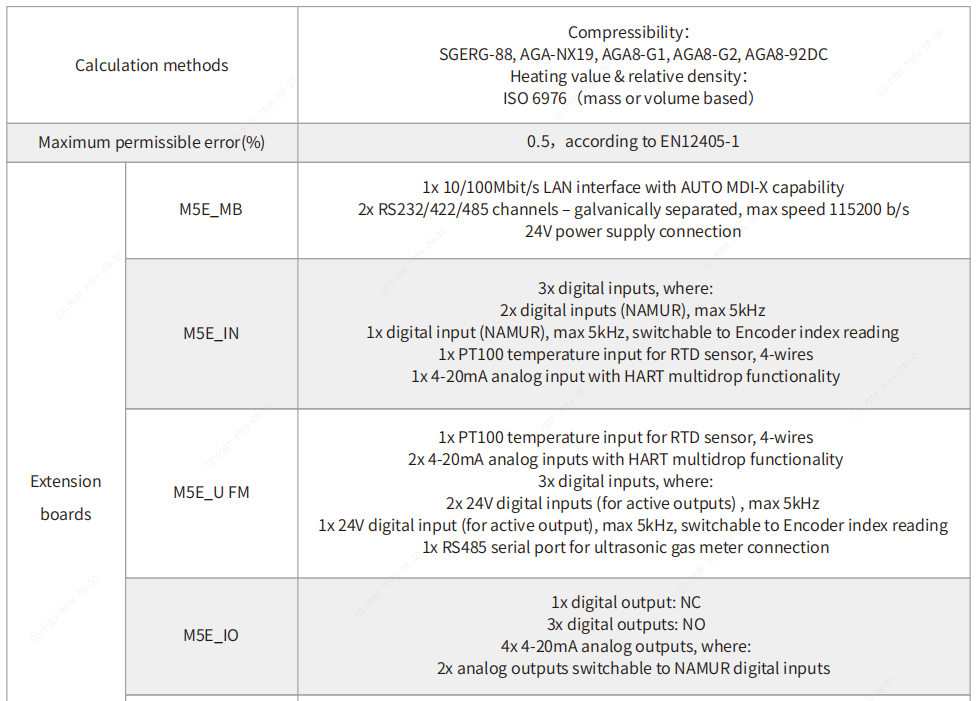

3. Technical Parameters:
